Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: FDSP
  • Model Number: MZLH420
  • Voltage: 380V
  • Power(W): 90/110kw
  • Dimension(L*W*H): 2800*1200*2100mm
  • Weight: 3.3T
  • Certification: CE,SGS,ISO9001
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Feeder material: Stainless
  • Motor brand: Siemens
  • Bearing: SKF
  • Oil seal: German
  • Material of ring die: Stainless steel or Alloy steel
  • Diameter of pellets: 6-8mm
  • Use: produce all kinds of biofuel pellets
  • Feeder power(kw): 2.2
  • force feeder power(kw): 1.5

Packaging & Delivery

Packaging Details Iron Pallet,Iron case ,sdandard packages.According to customers' requirements.
Delivery Time 20-30 Days

Widely applicable horizontal ring die biofuel pellet mill



Raw material of biomass pellet machine

It is mainly used for agro-forestry residues ,such as straw ,cotton stalk , rice husk ,peanut shell ,bamboo,empty fruit branch,pulverized coal and waste paper etc.



Biomass(wood) pellet application:



Advantages of biomass pellet machine:

1. It is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;



2. The feeder’s especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;



3. Feeder, conditioner and chute are made of stainless steel with long service life;



 4. Feeder has a variable speed controller to meet different outputs requirements;



5. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 20% when compared to a machine with a belt conveyor;



6. The bearing and oil seal in the main drive are imported to ensure highly-efficient, stability and high quality;



7. The alloy steel die is with international advanced equipment and techniques, and has long service life, and can make  slippery pellets of the highest quality.



Main technical and performance parameters:



        Model

Parameters

SZLH320-MX

SZLH350-MX

SZLH400-MX

SZLH420-MX

SZLH508-MX

Capacity (t/h)

0.2-0.4

0.4-0.6

0.5-1.0

0.8-1.2

1.5-2.0

Main Power(kw)

37

45/55

75/90

90/110

110/132/160

Conditioner Power(kw)

2.2

3.0

4.0

5.5

5.5/7.5

Feeder Power(kw)

0.75

1.1

1.5

1.5

2.2

Inside Dia(mm)

320

350

400

420

508

Pellet Size(mm)

6-8

6-8

6-8

6-8

6-8

 ps: We can customize the pelletizer with conditioner or without conditioner to meet your different demands.



Product exhibition

carbon steel material



Stainless steel material:

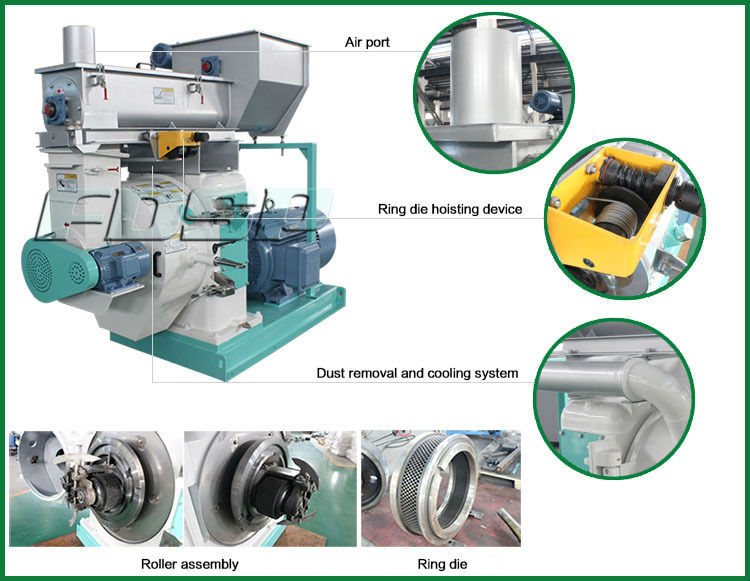

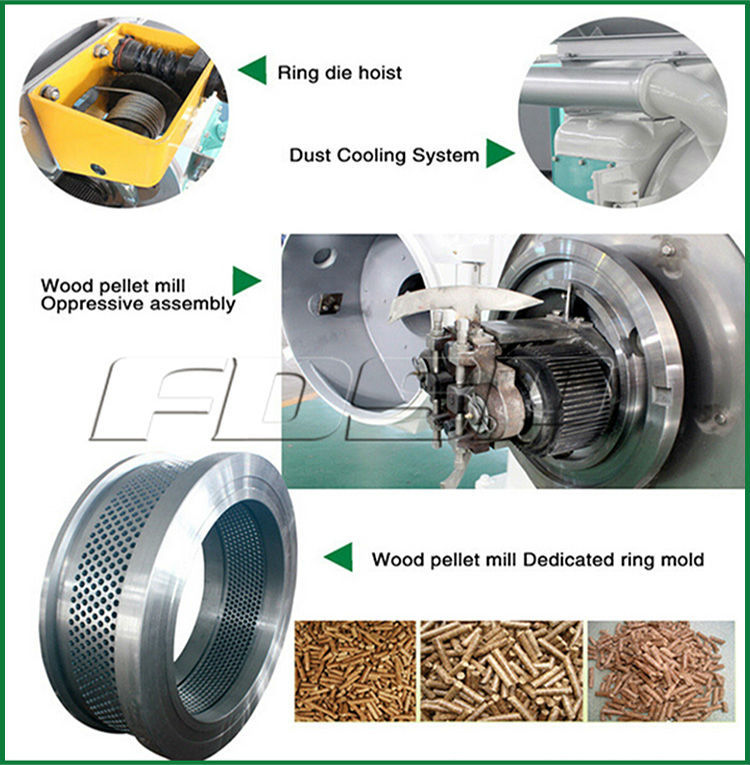

Details of biomass pellet machine :



Our company has a ring die production workshop,our auto drilling is leading technology in China,self-manufactured ring dies are with distinct material,fine process and heat treatment,hole drilling technology can reach gun drilling effect,good production performance and high capacity.

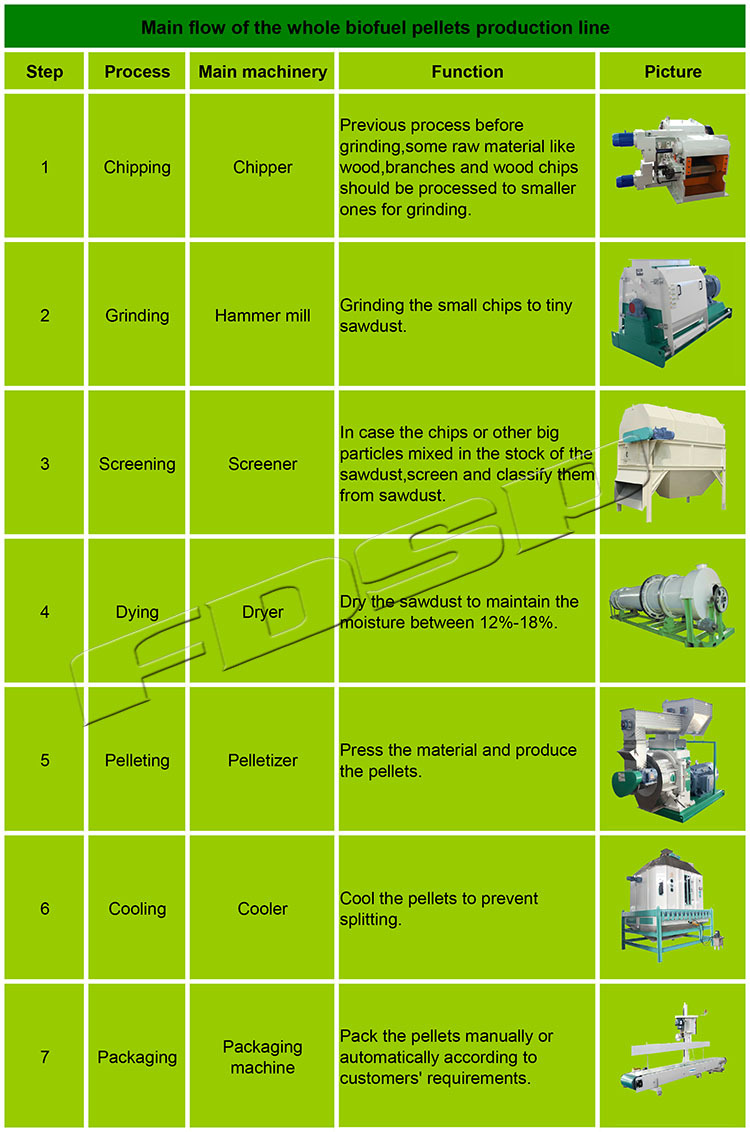

Main equipment for biomass pelleting complete production line:

Our customers:

 Our products have exported to many countries,such as Thailand,Vietnam,Iran,Greece,Egypt,USA etc,the high quality and superior service won the good reputation abroad.



Our certificates :



Packaging and delivery:
