Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: FDSP,OEM
  • Model Number: 10TPH-140TPH
  • Type: Feed Pellet Machine
  • Voltage: 380V/415V/440V
  • Power(W): Customized
  • Dimension(L*W*H): Customized
  • Weight: 2000 kg
  • Certification: ISO, CE, SGS
  • Warranty: 1 YEAR
  • After-sales Service Provided: Engineers available to service machinery overseas
  • making complete feed: for poultry, livestock, optional aquatic feed
  • 1hammer mill: grinding granular like corn, maize
  • 2mixer,liquid adding machine: 2mixing powder and liquid evenly
  • 3pellet machine: making pellet feed
  • 4cooler: cooling down and take moisture of pellet
  • 5crumbler: crumbler for crushing big pellet
  • 6screener: screener for divide pellet and mash,big pellet
  • auxiliary: cyclone,cleaner,pulse filter,conveyor,rotary distributor,etc
  • spare parts ring die, roller: Excellent 20TPH 30TPH Animal Poultry Feed Plant
  • poultry feed pellet making machine: animal feed pellet machine

Packaging & Delivery

Packaging Details iron pallet, soft guard

Economical Animal Feed Production Line_Complete poultry feed plant

This machine is also called  feed pellet making machine,poultry feed processing equipment,etc.

Application:Custimized the feed production line by your requirement

1.  Poultry & livestock feed Processing engineering

Feeds for animals in various growing period;Different capacity, varied from 10to 140TPH per line;

Meeting the standards of different countries and regions.



2.  Premix  feed Processing engineering Samll powder feed mill plant/poultry feed mill pulverizing and blending plant

Specialized equipment and process flow;Effectively controlled cross contamination, residue and dust emission;Different capacity, varied from 10-140 TPH per line.



3.  Pet-food  feed Processing engineering

Specialized extruder, dryer and coater adopted;Different capacity, varied from 2 to 100 TPH per line.



 4. Aquatic fish,shrimp  feed procesing engineering

Specialized extruder, different capacity, varied from 2-100TPH per line.



Raw material: all kinds of cereal like Soybeans, soybean meal, corn, fish meal, amino acids, mixed meal, additives, whey powder, oil, meat and bone meal, etc

Final products: feed as mash and pellet,crumble



Feed Pellets Processing Technology

Raw Material receiving&pre-cleaning → Grinding → Mixing → Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing

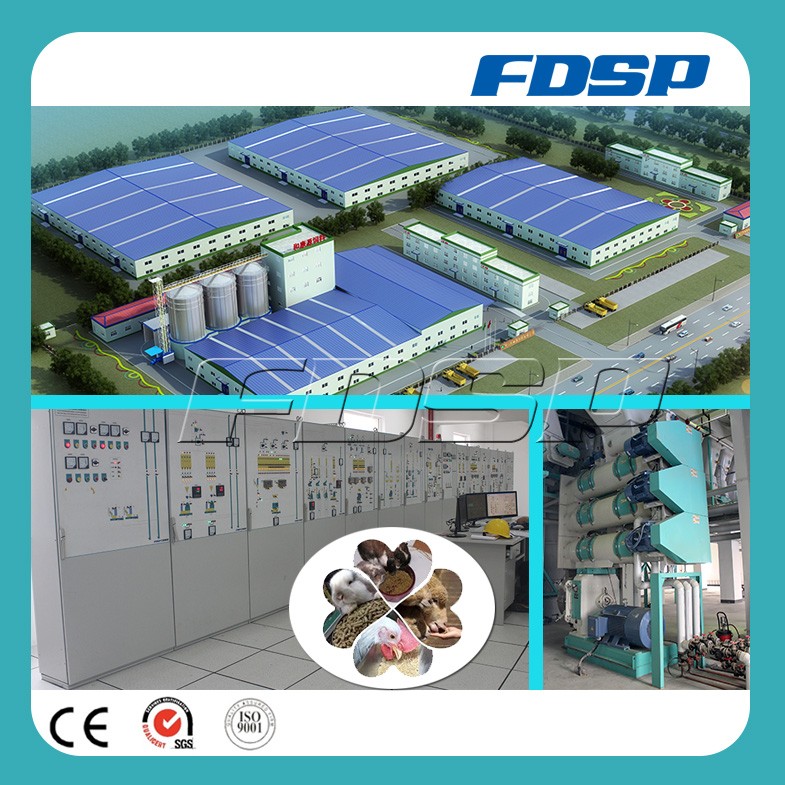

Complete feed pellet line show:
Equipment Related to Complete animal feed production line

Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine



Animal feed production line is made up of below several sections:

Cleaning process as your requirement

To clean the material in order to ensure the quality of the products and the regular working of all equipment.




(1) crushing process

The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.





(2)Automatic dosing & mixing process

The task of this section is:
A. evenly mix different materials into complete powder feed by formula.
B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.

(3) pelletizing process

The task of this section is to pelletize the powder feed to required sizes.





Cooling Process
After the pelletizing process,the temperature of the feed pellet is about 60/80 degrees Celsius,with a moisture content of about 15%.A Cooler must then be used to reduce the moisture content of the pellets to about 3/4%,thereby making the pellets easier to store.

(4). Sieving Process

It is for screening and classifying of mash or pellet feed.



(5). Packing Process

Independent packaging system, automatic packing, high precision.10-50KG/bag, 800-1000kg per bag.

Electrical  Control System:MCC+PLC+PC+on-site control cabinet

the mimic panel is adopted. MCC is with manual or automatic interlock function.Safety,simple operation.



Optional computer control center







 Our project:

Customer visiting

Typical project

Company Information



Certificate:


FAQ:



Lymj at feedmachinery(net)

Ms. Sunny Zhou(sales director)

Products: feed machinery, feed projects, die and spare parts, bio-mass machinery, fertilizer machinery, silo equipments, etc.
Company :        JIANGSU LIANGYOU AGRO MACHINERY CO., LTD

Skype:            413608139 at qq dot com

Phone:            +86-15907191190
