Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: FDSP
  • Model Number: SZLH508b3
  • Type: Feed Pellet Machine
  • Voltage: 380V
  • Power(W): 132
  • Dimension(L*W*H): 3500*1470*2800
  • Weight: 4400 kg
  • Certification: CE,SGS,ISO9001
  • Warranty: ONE YEAR
  • After-sales Service Provided: Engineers available to service machinery overseas
  • conditioner power: 7.5
  • motor brand: SIEMENS

Packaging & Delivery

Packaging Details iron pallet
Delivery Time 30-45days

Factory fish feed pellet machine price/fish food making machine



Brief introduction of Floating Fish Feed Granule Mill

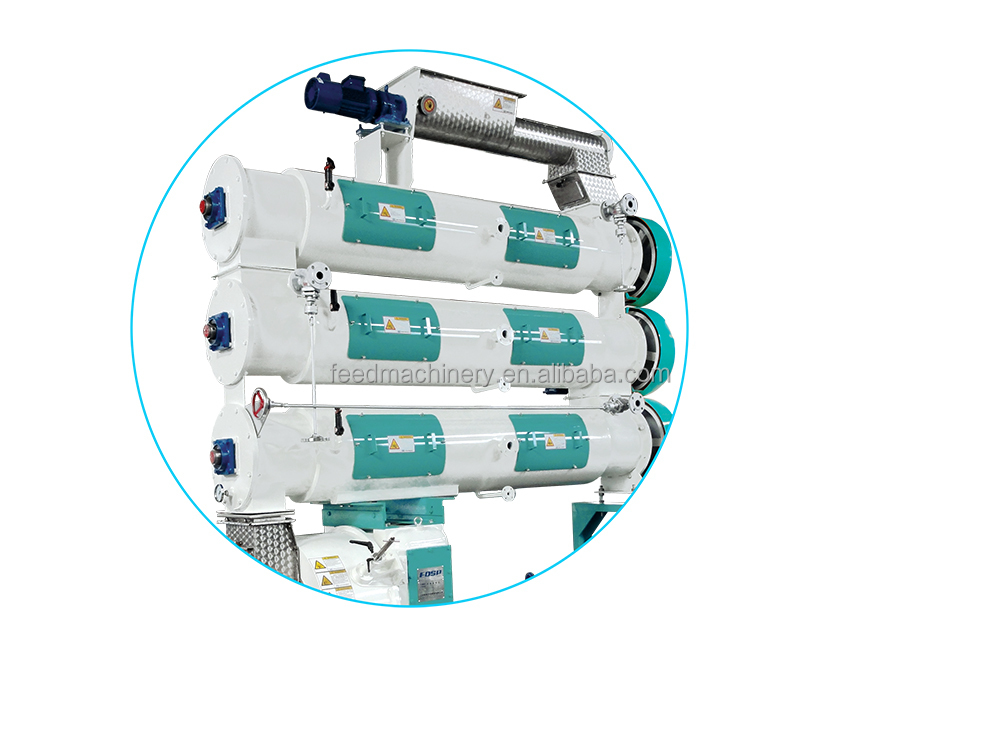

1, With differential double shaft or three layers jacket conditioners;

2, Special-purpose cutter mechanism;

3, Anti-knotting arch feeder;

4, Automatic control system and overload protection design



Detailed description of Floating Fish Feed Granule Mill

1,SZLH508b3 special feed pellet feed mill—introduction

1) High efficient

The improved main drive and press room all contribute to consistent high output and high quality pellets. This kind

of feed pellet machinery usually equip differential double shaft conditioners or three layers jacket conditioners, which ensures materials fully conditioning and curing. The feeder with round feeding tube and frequency conversion

feeding, and the round feeding tube can prevent the materials knot arching in the conditioner and ensure feeding

evenly.



2) High quality pellets

The special designed conditioners ,the rotary speed of conditioner shaft ,and the steam adding system make the

materials fully conditioning.The cutter blade is made high speed tool steel or cutter point welded special alloy, the

thickness of cutter blade is only 2-3mm, so the pellet can be cut quickly and smoothly. Based on the characters of

aqua feed to design the speed of ring die, the press rollers appearance, and the special design feeding scraper, that

all improve production output ,and the pellets quality..



3) User friendly

The cutter mechanism is fixed on case, no need to take the cutter away when open the door. Also the cutter blade

is cling to the surface of ring die, so it can be changed quickly. Automatic control system and overload protection

design, are all friendly to users .





2, floating fish feed granulator —technical data:

MODEL

capacity

Main power

(kw)

Conditioner power

(kw)

Feeder power

(kw)

Inner dia

(mm)

Pellet size

(mm)

SZLH420

3-14

90/110

5.5

1.5

420

2-12

SZLH508

6-15

110/132/160

7.5

1.5

508

2-12

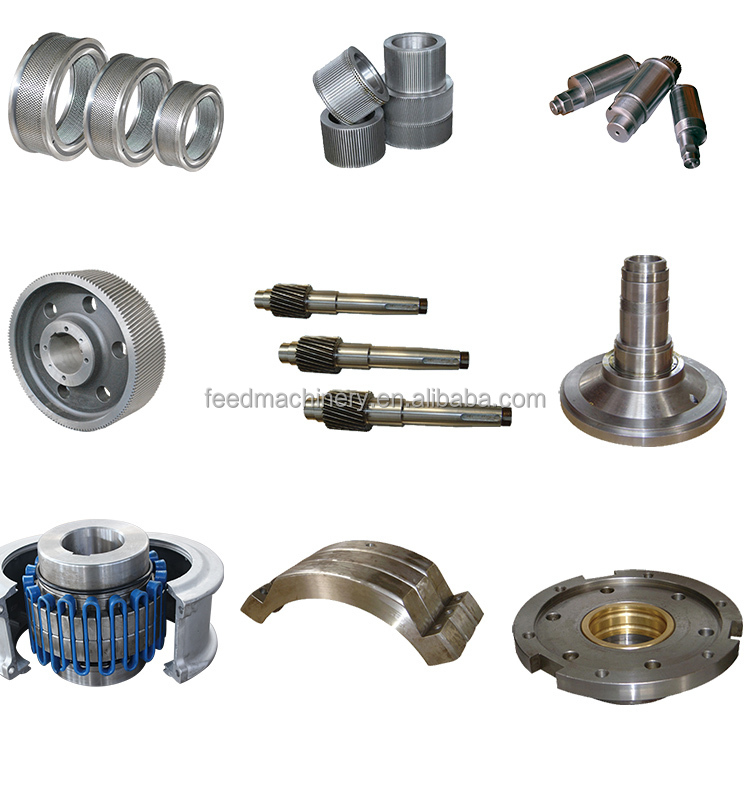

3, Spare parts



(WE ALSO PROVICE CUSTOMERIZED SOLUTION FOR SPARE PARTS.)



WHY CHOOSE US?

Our efficient functional pellet mill has passed CE certificate, ISO9001: 2008, etc., and owns several patents, such

as utility model patents certificate and high-tech products certificate, etc.
