Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: FDSP
  • Model Number: Customized
  • Voltage: 380/400/415v
  • Power(W): 75-220KW
  • Dimension(L*W*H): 3742*1800*2885mm
  • Weight: 6100KG
  • Certification: CE ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: Customize
  • Main pelletizer motor: Siemens
  • Bearing brand: SKF
  • Oil seal: Germany
  • Name: biomass pellet plant

Packaging & Delivery

Packaging Details Iron Pallet,Iron case ,sdandard packages.
Delivery Time Shipped in 15 days after payment

China's  wood pellet compress line Chinese  biomass wood pellet mill line



Raw material of biomass pellets :

Nearly all forestry and agro-waste material can be made into wood pellets by our ring die wood pellet mill, such as: Wood Chips, Shaving, Sawdust, Groundnut-shell, Sugarcane ,Caster Shells/Stalk, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco Waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea Waste, Wheat Straw, Palm husk, Soybeans Husk, Coir Pitch Barks/Straws, Rice Husks etc. The final pellets can be used for industrial boilers and large power plants as well as home heating.


Bioamss pellet application :


The discription of bioamss wood pellet production line:

We can provide different kind of complete biomass pellet production line. The biomass pellet production line suitable for press the different kind of wood wast, wood scrap, wood shaving and other biomass materials such as rice husk, corn cob, straw , palm fiber and other agricultural waste into good quality biomass fuel pellets.


Biomass wood pellet production line including the follow sections:

wood sawdust making section, for cutting the log wood or wood branches into sawdust directly

the drying section, for drying the wet materials into good moisture content about 15%


The pellet making section, this is the mainly part of this wood pellet production line, good for press 100% sawdust powder  or any other kind of biomass materials into good quality pellets.


The cooling and screening section, for cooling the pellets and separate the dust and broken pellets,made the output pellets is good for storage.


The packing section, for packing the final produces into bags, normally can be 15-50kg/bags.

the control section, for different control cabinet and control system to control all the equipment, with overload protection system and also with motor protection system inside the control cabinet.


 Biomass wood pellet production line exhibition:

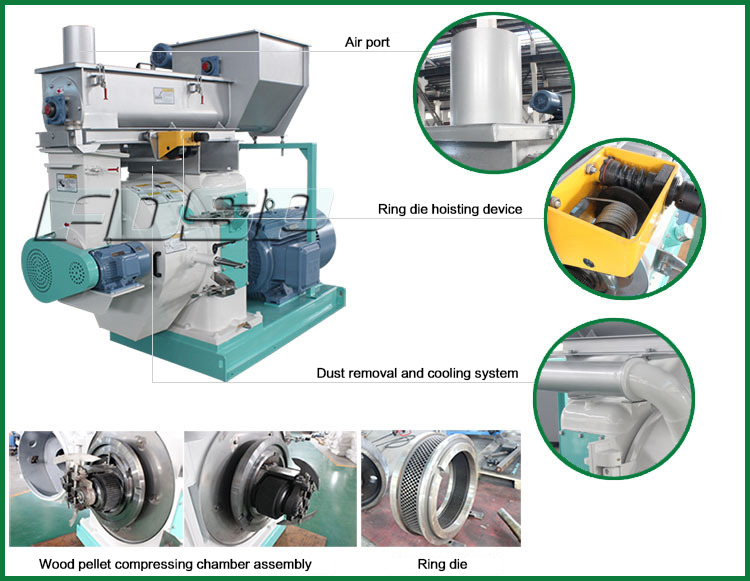

Details of main equipment - biomass wood pellet mill:


Main equipments of biomass wood pellet production line :


Detail quotation solutions for you, we need to know information as follows:

(1). What capacity would your prefer?

-----The Capacity Range of Wood Pellet Machine: 0.8-1T; 1.5-2T; 2-3T;3-4T.


(2).What is your raw material?

-----According to different raw material(such as hard wood,soft wood,straw,rice hust), capacity is different.


(3).What is your raw material size?

-----Best size for pressing high quality pellets is 3mm-5mm.


(4).What is the moisture of your raw material?

-----Better to be 10-15%.( If large than this, then we will recommend your Dryer Machine)


(5).Final Pellets Size?

-----We have Diameter for Pellets:6mm, 8mm, 10mm, 12mm, (Different Diameters for your Different Requirement.)

------Pellets Length: Adjustable20-50mm. (Normally our clients ask pellets length of 33mm, between 30-36mm)

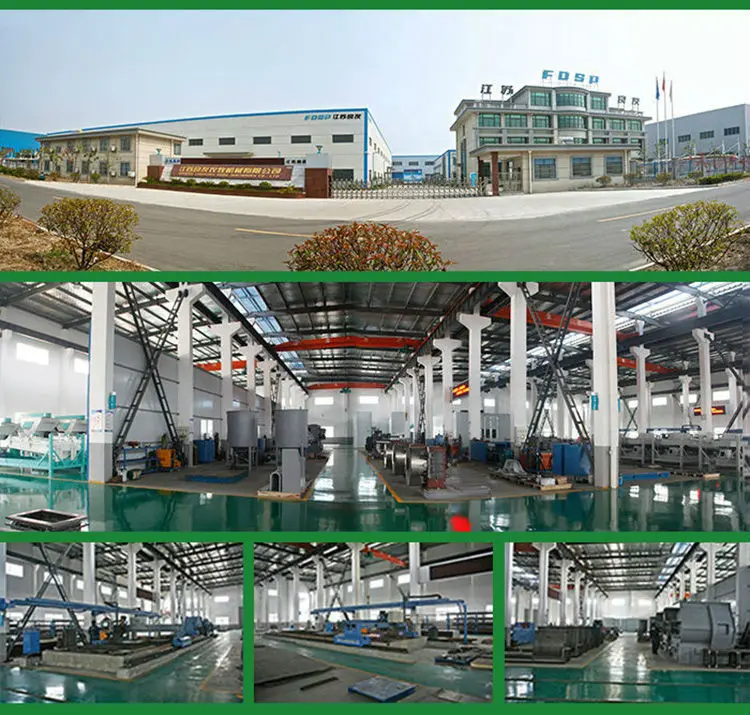

Company view :


Gold service:

We treat customers sincerely and pay more attention to how to maximize return of investment. We improve quality, reduce power consumption, shorten construction schedule, and quick feedback in terms of technology, production, engineering and service.  We will furnish comprehensive, professional, and thorough service to meet customer's requirements. Thinking from customer's side, and solve problems timely.


Our certificates and honours:

Packaging & Shipping



Our products have passed CE certification long before, also the pellets is with SGS certification. Our company is with ISO9001 certification.


Besides, we have a professional technical team, with two departments for developing single machine and customizing complete pellet line solution. Most of our engineers are with over 20 years' experience in this field and also have a lot of experience in overseas projects.


With our outstanding technical team, we have earned a lot of certifications for our machines, together with a lot of patented design.
