Nice performance suitable mixer machine for animal feed pig feed mixer

FOB Reference Price:Get Latest Price
US $5,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
FDSP,OEM
Model Number:
SHSJ2
Type:
Mixer
Voltage:
3 Phrase(380V,415V,440V,etc)
Power(W):
18.5kw
Dimension(L*W*H):
2585mm*2280mm*1730
Weight:
3100 kg
Certification:
CE,SGS,GHOST
Warranty:
1year
After-sales Service Provided:
Engineers available to service machinery overseas
application:
poultry feed mixer
material of mixer machine:
Stainless steel;carbon steel;customized
capacity:
1000kg/batch
Homogeneity:
above 95%
Effective volume:
2
Adding liquid::
water, oil, molasses,etc
Discharge system::
Pneumatic controlled
Compressed air blowing system:
Optional( for premix,etc)
type:
SHSJ0.2, SHSJ0.5, SHSJ1, SHSJ3, SHSJ4, etc
name:
poultry feed mixer CE certificated stainless steel
SupplyAbility
SupplyAbility:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
iron pallet or depending on customers' request
Port
Shanghai
Lead Time :
30days

Nice performance suitable mixer machine for animal feed pig feed mixer

Double-shaft  poultry feed mixing

FDSP SHSJ series double-shaft paddle mixer, also called horizontal non-gravity mixer, it is an advanced

mixing machine with high efficiency, high uniformity, high intensity, low energy consumption and low pollution. The machine is widely used for mixing powder powder and powder granule, especially suitable for materials

with big difference in specific gravity or particle size.



Features of  Double-shaft  poultry feed mixing

1. High homogeneity

International patent double-circle rotor design, inside and outside double-circle paddle design, reinforcing

convection, shearing, and mixing effects.Mixing homogeneity is up to 97.7%.



2. No residues

Adjustable gap between paddle and casing, ensuring extremely low residue ratio, avoiding materials cross

contamination; fully open discharging gate, mixed materials are discharged completely in no time, no residue.



3. Zero leakage

Discharging gate is sealed with rubber air bag, realizing zero leakage; at the shaft ends, the packing seal is

specially designed to ensure zero leakage.



4. Human friendly

The large access door in reasonable design, ease of cleaning and time saving; elevating type liquid addition

device "air atomization" contributes to high-precise addition, which ensures homogenous mixing without

generating any agglomeration.

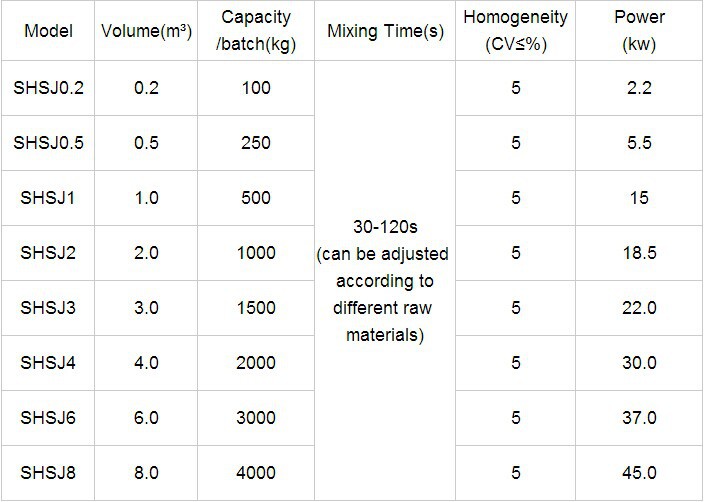

Specifications of  Double-shaft  poultry feed mixing

double mixer spec.

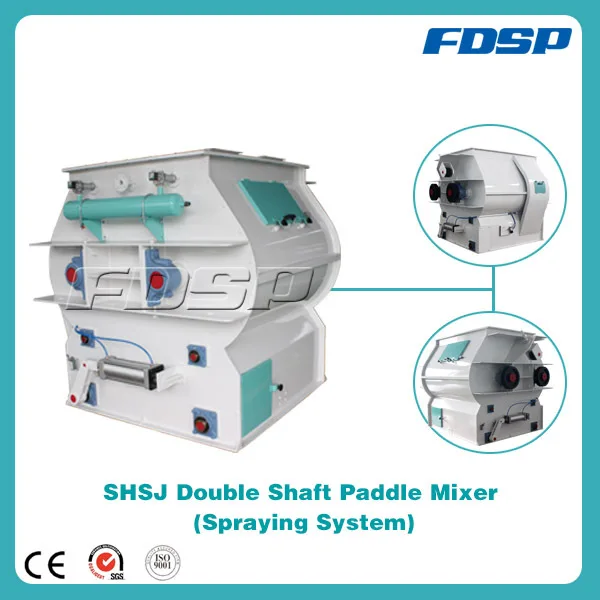

Pictures of Double-shaft  poultry feed mixing

SHSJ

double mixer01

Other series mixer: Ribon mixer

SLHY

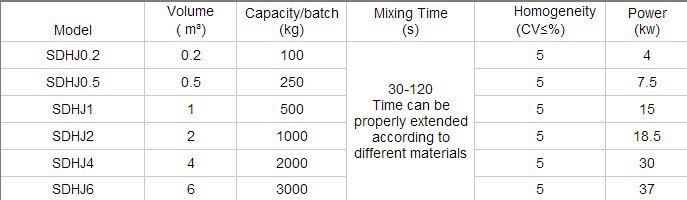

Single shaft mixer

SDHJ-2

  single mixer spec..jpg



Typical project
