Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: FDSP
  • Model Number: MZLH320
  • Type: pellet mill
  • Voltage: 380V 50HZ
  • Power(W): 37kw
  • Dimension(L*W*H): various
  • Weight: 1500 kg
  • Certification: CE ISO SGS
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Motor: Siemens
  • Bearing: SKF
  • Raw Material: bamboo, wood, tree,husk,sawdust,straw,etc
  • Main Parts: screw feeder, conditioner, etc.
  • Capacity: 0.2-0.4TPH
  • Ring Die Diameter: 320mm
  • Pellet Size: 6mm,8mm,10mm,12mm
  • Shape of Wood Pellet: Virgulate
  • Wearing Parts: ring die and press roll
  • Price: Negotiable

Packaging & Delivery

Packaging Details Iron Pallet, Iron case
Delivery Time 60 days

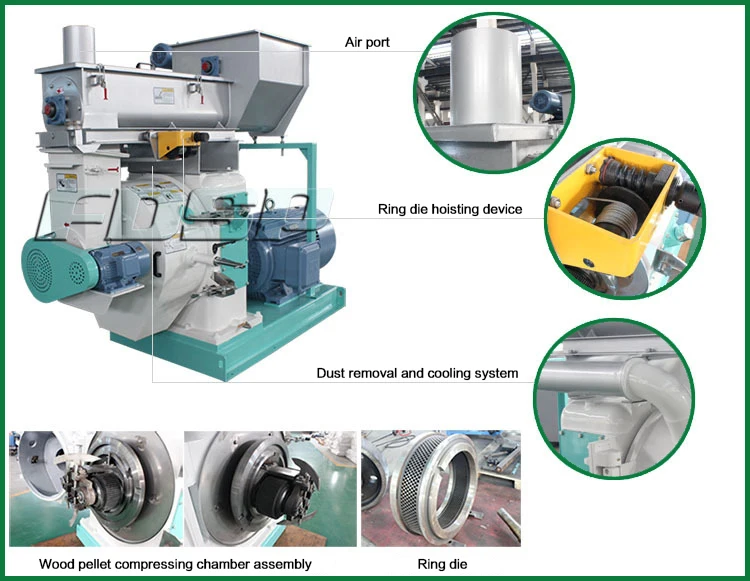

CE good quality making wood pellets from sawdust



1. It is widely used for pellet of light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder’s especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;
3. Feeder, conditioner and chute are made of stainless steel with long service life;
4. It is with magnet and over load protection system, which can protect machine well during production;
5. Feeder is with a variable speed controlled to meet different outputs requirements;
6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which can increase the output 15% more than the same type machine with belt-convey;
7. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability, credibility;
8. The alloy steel die is with international advanced equipment and technics, and has long service life, slippery pellet and high quality.




       ModelParameters

MZLH320

MZLH350

MZLH400

MZLH420

MZLH508

Capacity (t/h)

0.2-0.4

0.4-0.6

0.5-1.0

0.8-1.2

1.5-2.0

Main Power(kw)

37

45/55

75/90

90/110

110/132/160

Conditioner Power(kw)

2.2

3.0

4.0

5.5

4/5.5

Feeder Power(kw)

0.75

1.1

1.5

1.5

1.5/2.2

Inside Dia(mm)

320

350

400

420

508

Pellet Size(mm)

6-12

6-12

6-12

6-12

6-12





We are manufacturing wood pellet mill for wood pellet production line to make wood pellets , and our all products have got CE and ISO9001: 2000 Certificate.



We have manufactured wood pellet machine, pellet spare parts and pellet production line for more than 10 years, which have been widely sold in Middle East, Africa, South Asia, Southeast Asia, ect.

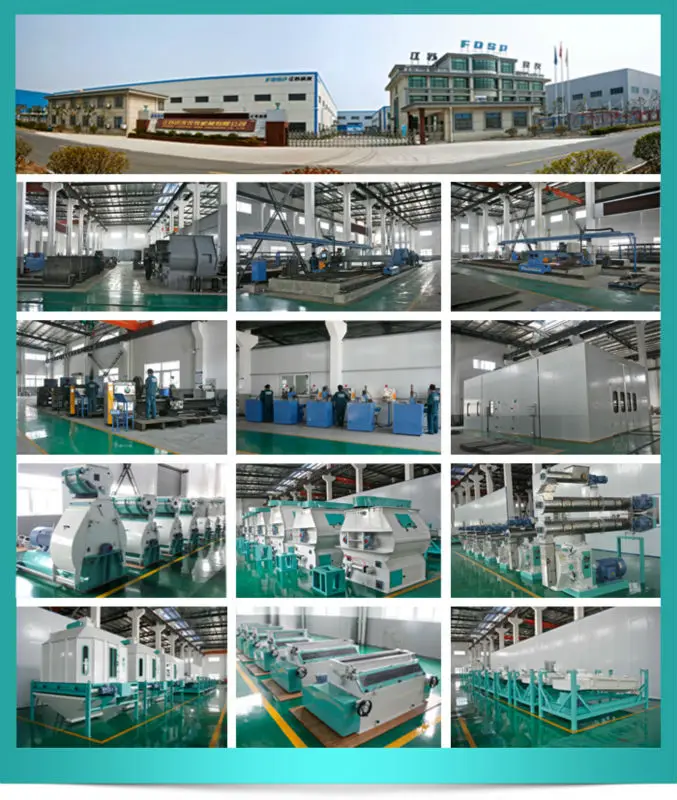

Jiangsu Liangyou FDSP was established in June 2003, is located in the zhongguancun science & technology industrial park. It covers an area of 15000 square meters.





Our products passde the ISO9001:2008 international quality system certification, the countries of the european union CE certification, SGS certification,GOST Russia certification.
